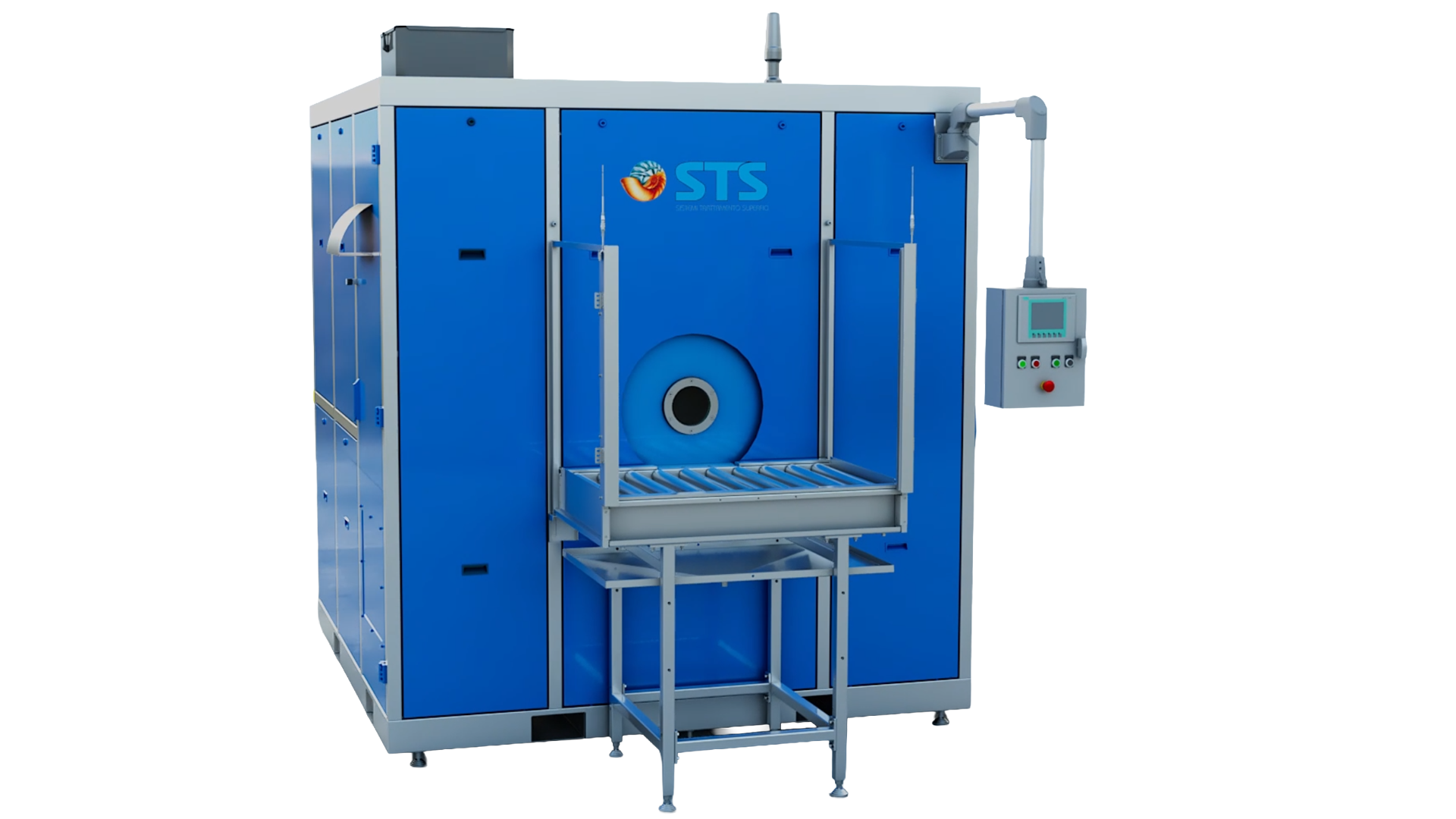

AQUAROLL EE30 with two baskets

Description

This plant is designed to wash, rinse, passivate in a separate tank, and dry metallic parts. It is composed of one washing module and one/two rinse modules. Thanks to the continuous rotation of the load combined with low/high pressure washing jet and immersion washing, this plant allows to get excellent washing quality.

Contattaci

Video

Documentation

Advantages

Features

  • Vacuum dry
  • Swinging
  • Rotational
  • Flood and spray wash
  • Suitable for any kind of metal
  • Lower energetic consumption

Standard equipment

  • Stainless steel construction
  • Vacuum-tight system
  • Oil separator system
  • Swarfs filter
  • Touch screen
  • Tele assistance
  • Automatic dispenser

Optional equipment

  • Ultrasounds
  • Filtration up to 10 µm
  • Demineralizing system
  • Robotic load/unload of baskets
  • Cooling station
  • Customized baskets
  • Fume cleaner

Applications

Technical Features

MODELBASKET mmMAX LOAD WEIGHT KGOVERALL DIMENSIONSCYCLE TIME min.
EE30300 x 520 x 4151001000 x 1965 x 22956 – 10
EE30R with single rinse 300 x 520 x 4151001845 x 1965 x 22956 – 10
EE30S with double rinse 300 x 520 x 4151002630 x 1965 x 22956 – 10
